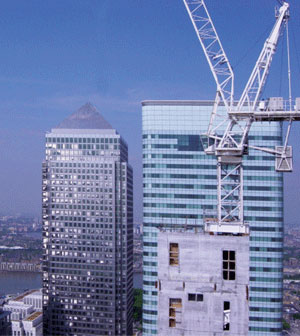

Building Sites

Measuring the wind speed and direction, temperature atmospheric pressure and humidity
Inform extreme weather conditions
Manage dangerous situations

The system IRDAM CORIOLIS an automatic weather sensor WST6000 and METEONET software, is a weather monitoring device for construction sites.

IRDAM CORIOLIS allows :

Optimizing of the work organization, according to the actual weather conditions
Optimizing the production of construction materials by providing the necessary meteorological information in real time.
Inform instantly crane and scaffolding personal of risks due to gusts of wind.

Other benefits ...

The automatic weather sensors WST6000 can be networked to cover a whole construction site area with software METEONET
The measurements are transmitted by cable, fibre optics, modem, wireless or Intranet / Internet
The automatic weather sensors WST6000 are equipped to incorporate measures of external sensors such as rain gauges, temperature sensors or measures of visibility

Meteorological Weather Sensor

0 - 70 m/s
-40 +60 °C
300 -1100 hPa
0 - 100 % humidity
RS-485 Serial link

WST6000HS
Meteorological sensor with automatic de-icing heating system

0 - 70 m/s
-40 +60 C°
300 -1100 hPa
0 - 100 % humidity
RS-485 Serial link

GEPAL
Alarm Box

Safety Alarm Management related to the meteorological parameters.
Can be connected directly to the PLC of the client installation.

PWR 24
Power Supply Module
240 VAC to 24VDC
50 or 60 Hz
50 W

Converter AC/DC 24V / 2,5A
Converter RS-485 / RS-232

RADIO RECEIVERS
AND TRANSMITTERS

On request

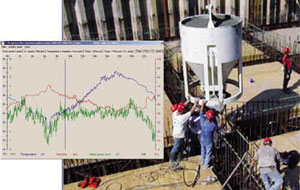

SOFTWARE FOR METEONET MONO AND MULTI
Software for PC and LAN /Intranet showing the measured data's from IRDAM weather sensors
